Product Description

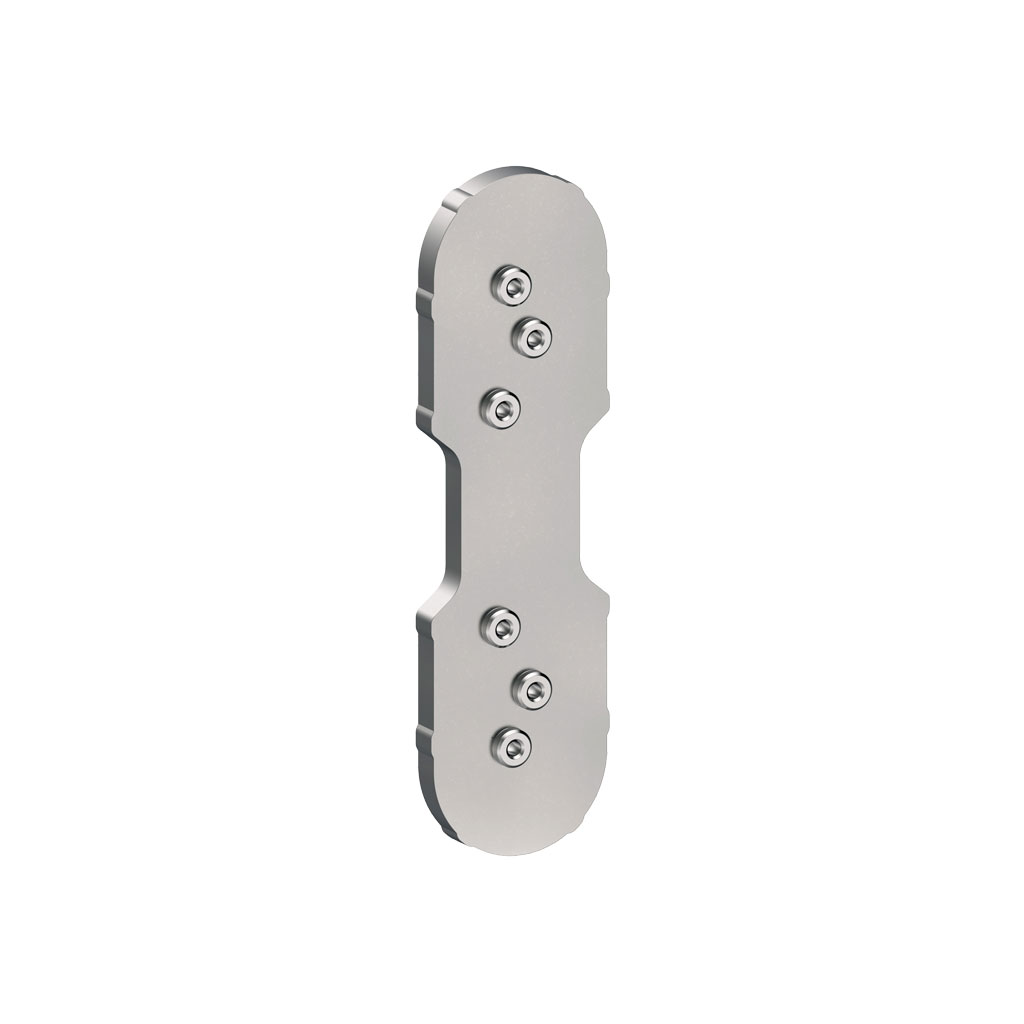

• Drilling template for installation of hidden hinge CHFD60
• Template to be inserted in the 120×30 pocket of a router template

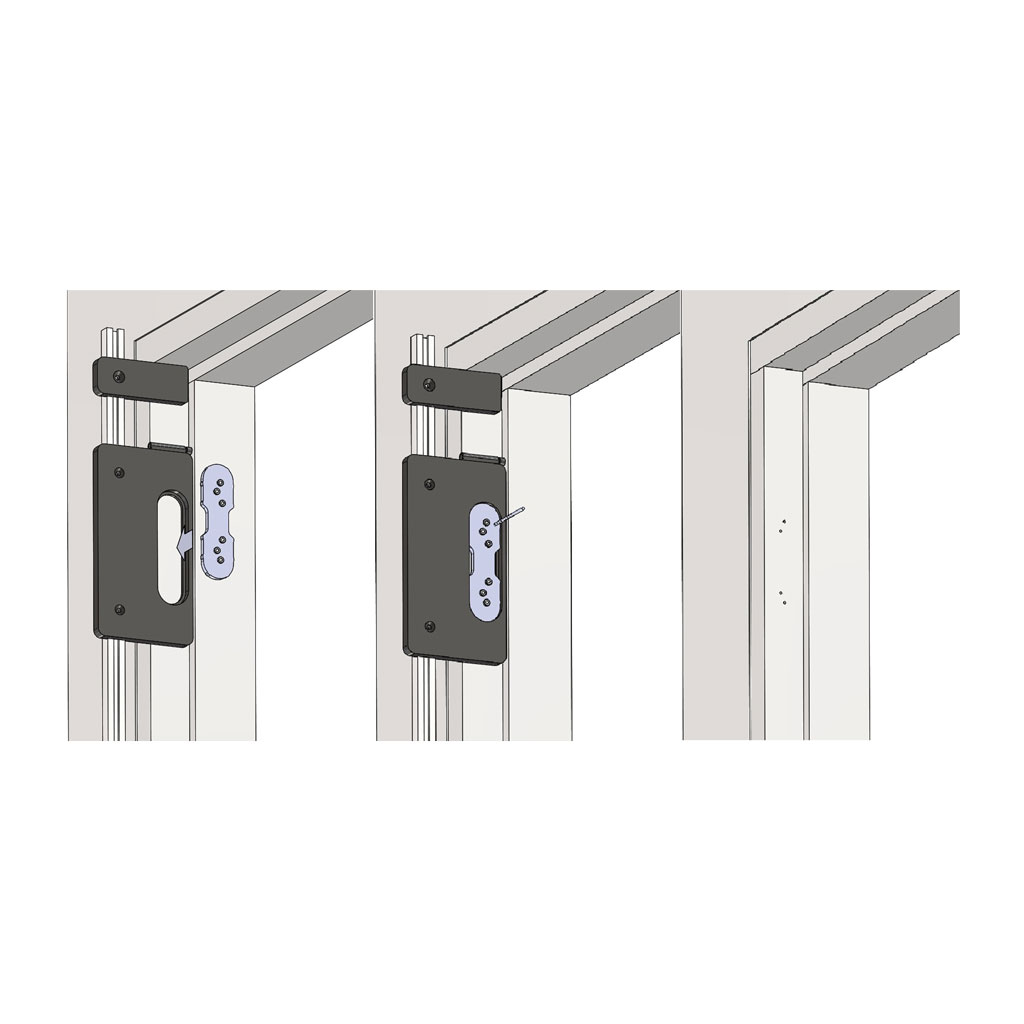

• Tool for easy positioning and pre-drilling holes on exact counter position of the cavity on the opposite element (door vs. doorframe)

Technical details

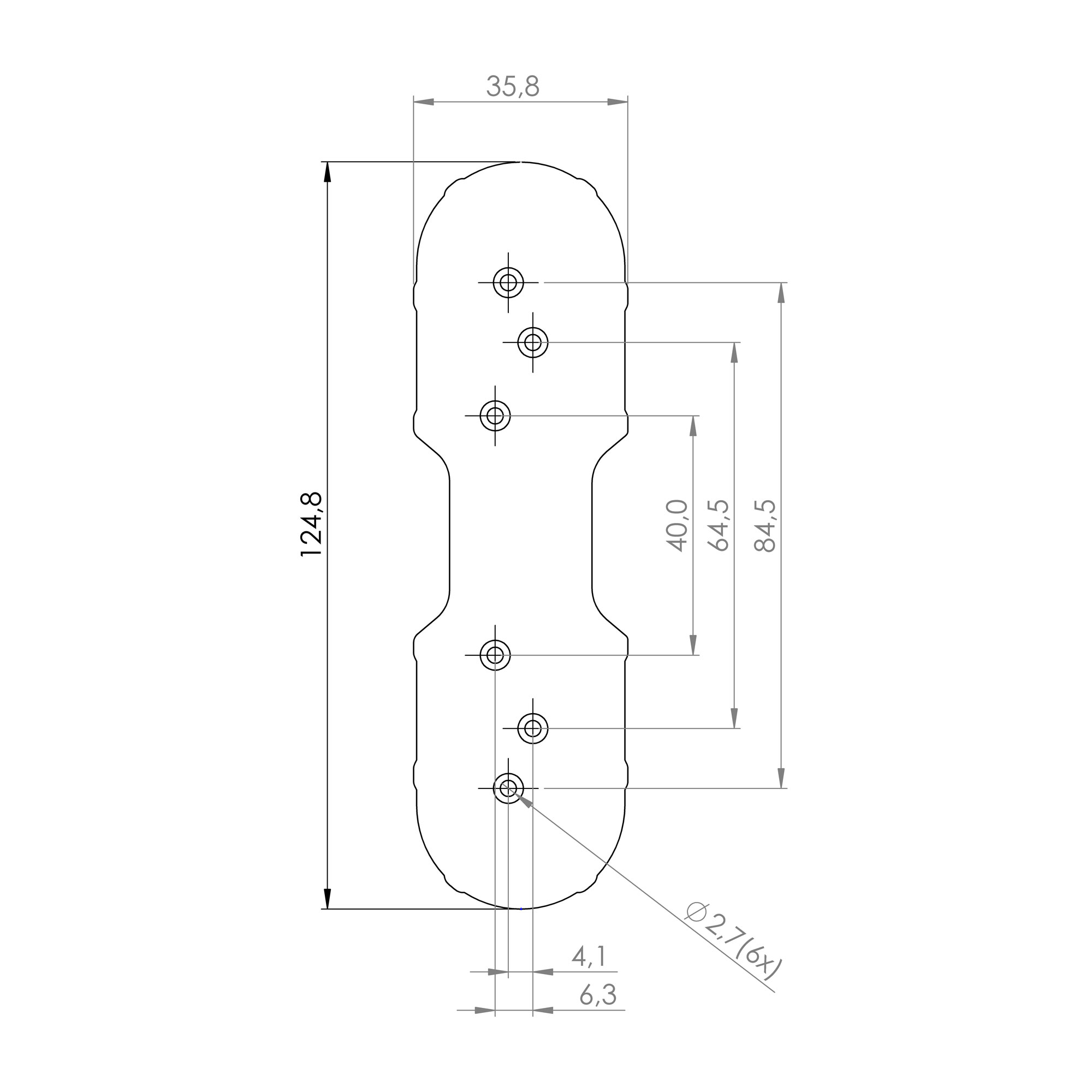

• Overall product dimensions: 126x36mm
• Applicable for2.5mm drill holes
• Aluminum base 5mm thickness
• Hardened Steel drill guiding inserts

Installation Downloads

• Installation Manual for Router machine
