Product Description

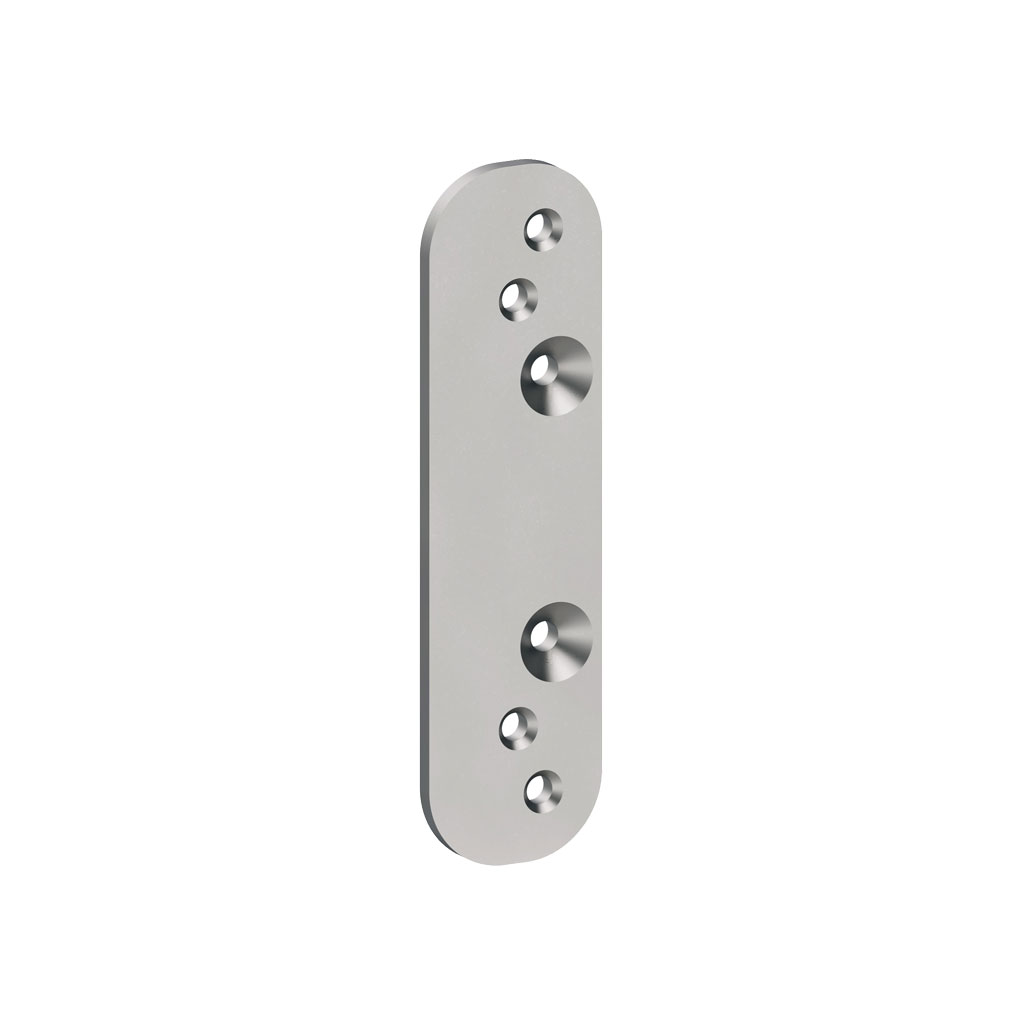

• Fixing plate for installing concealed hinge CFHD60 onto steel door frames

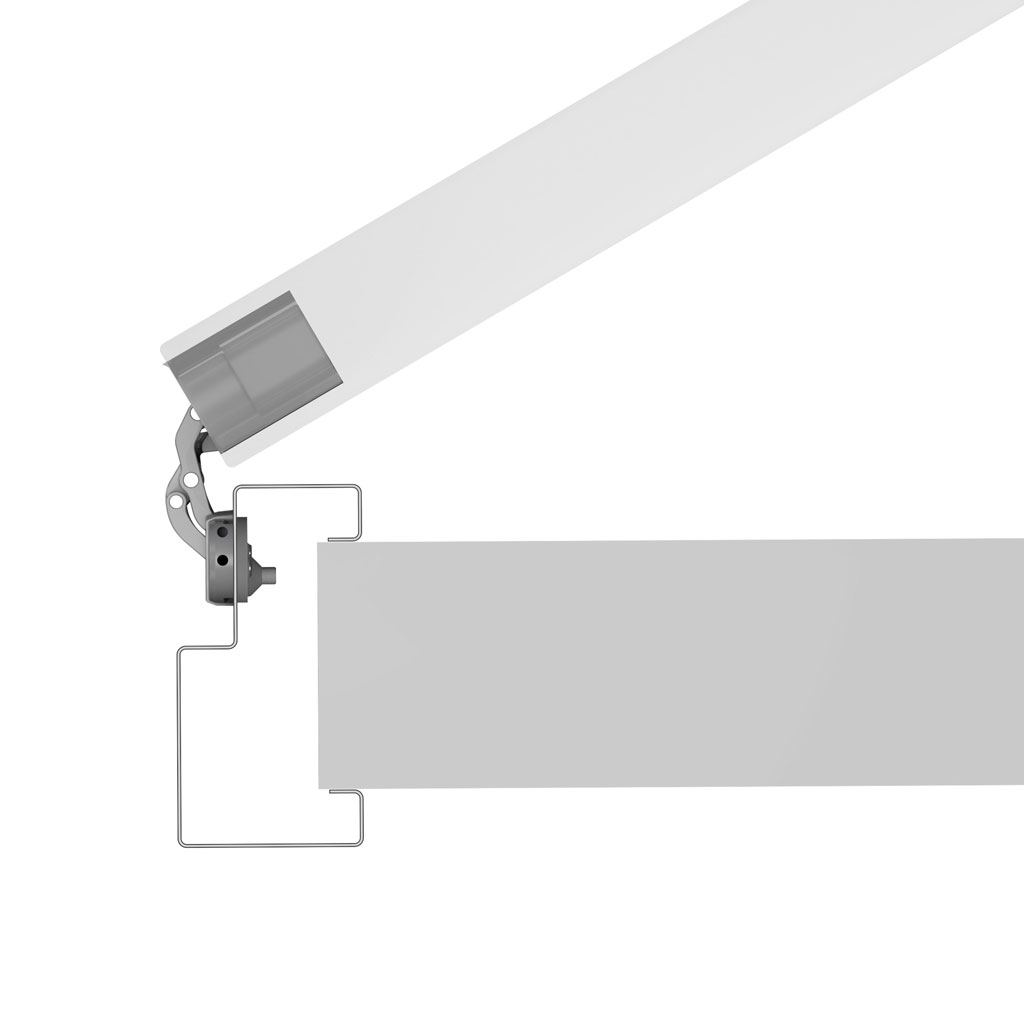

• Fixation with two M5 screws on inner side of steel doorframe profile
• The hinge will be screwed with 4x M5 screws onto fixing plate

Technical details

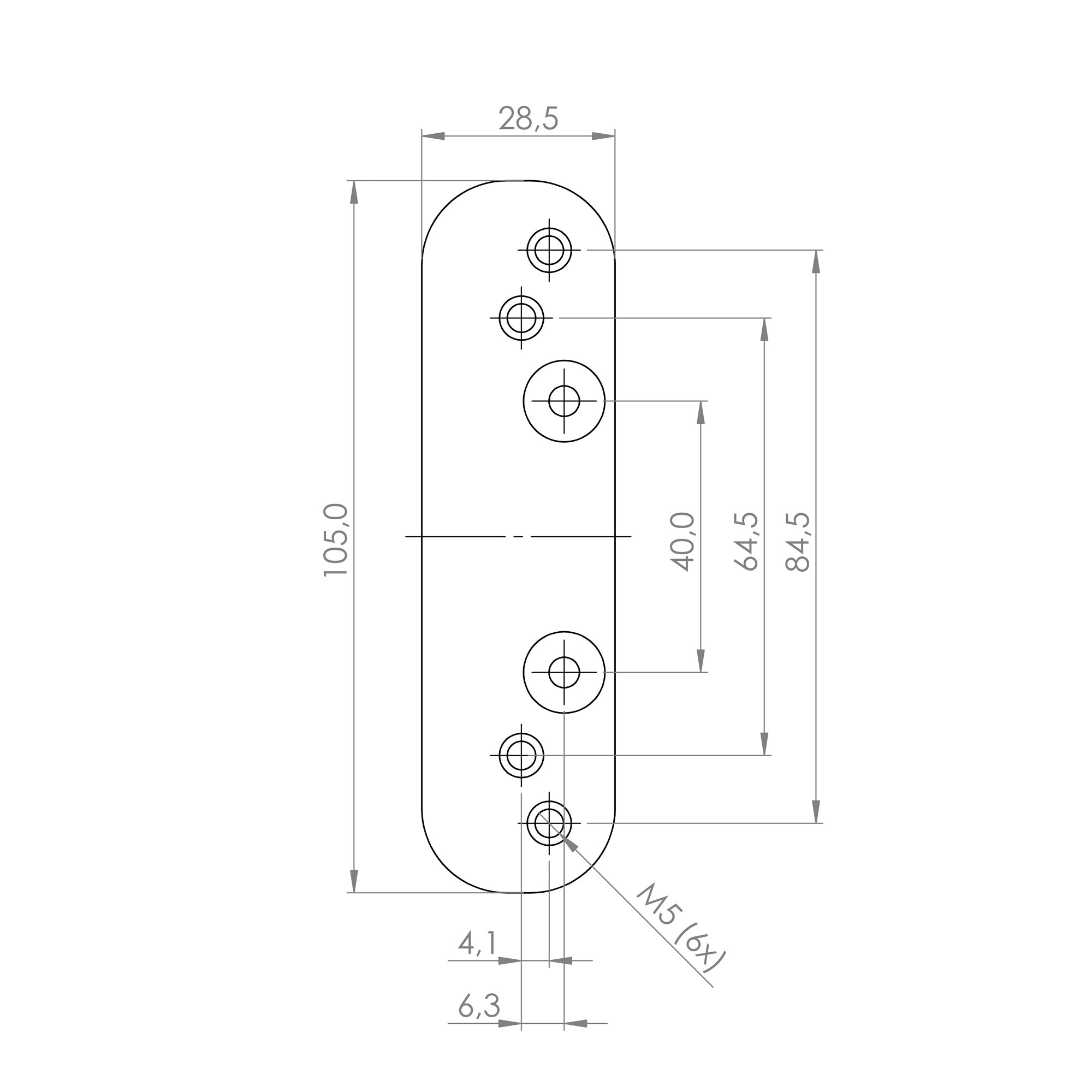

• Overall product dimensions: 105x28x3mm
• 6x M5 holes
• Including installation screws
• Pre-drilling holes in steel door frame Ø5,5mm
• Wall thickness steel doorframe min. 0,8mm

Installation Downloads

• CAD file for Installation
