Product Description

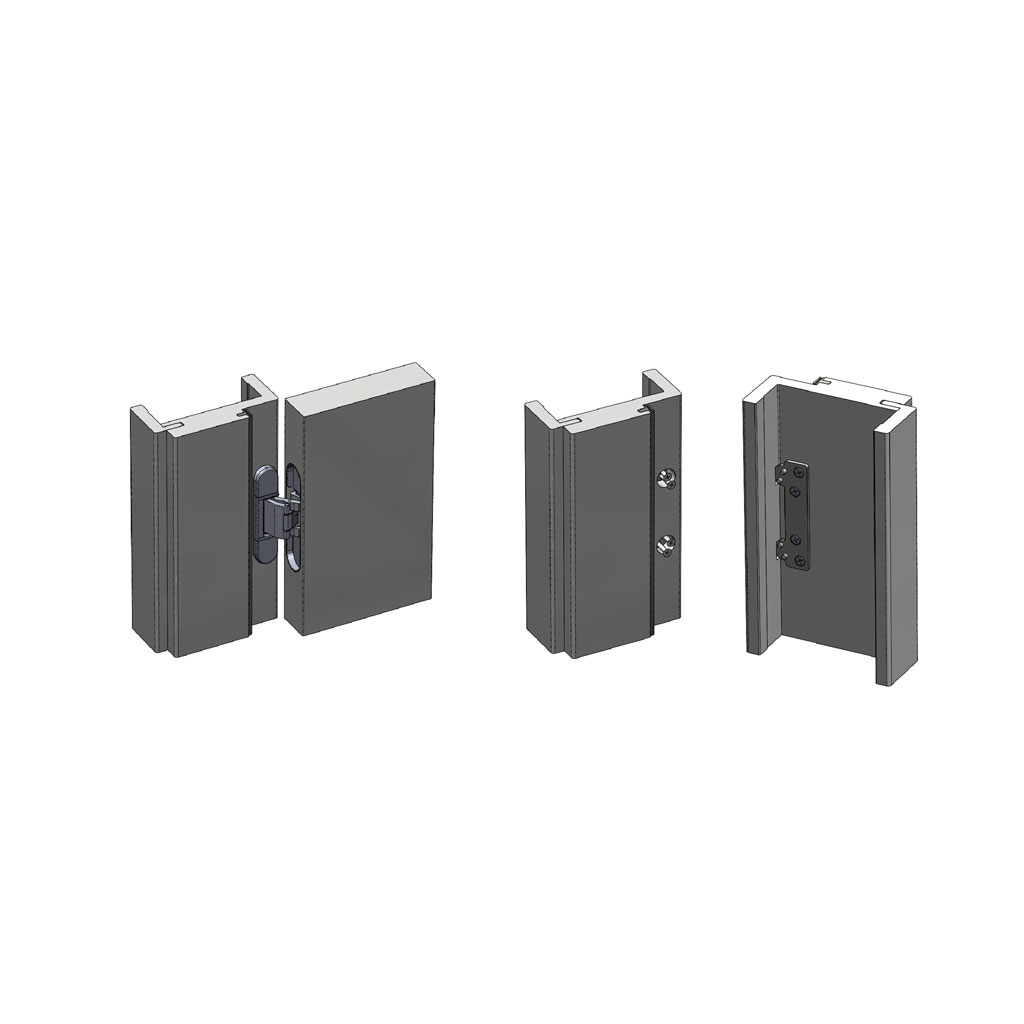

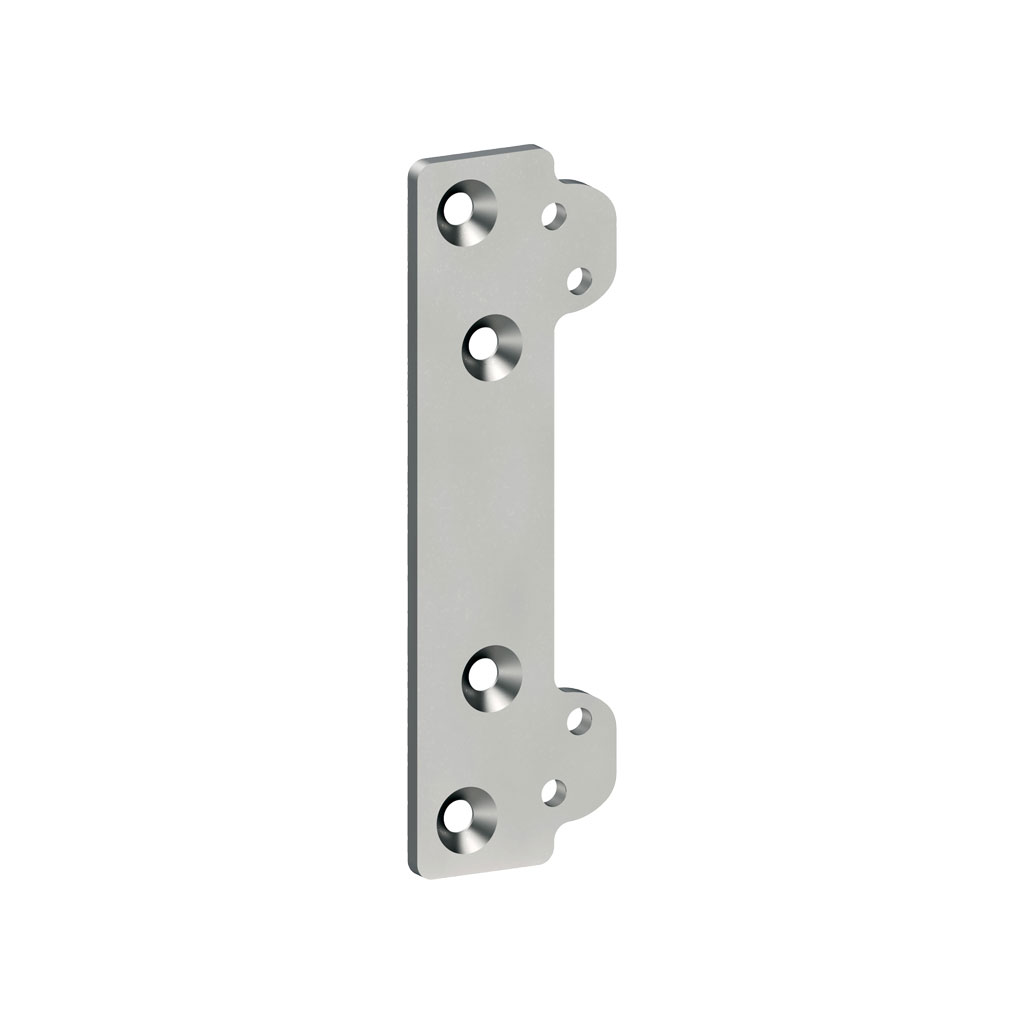

• Fixing plate for installing the CFHD60 concealed hinge onto wooden casing frames

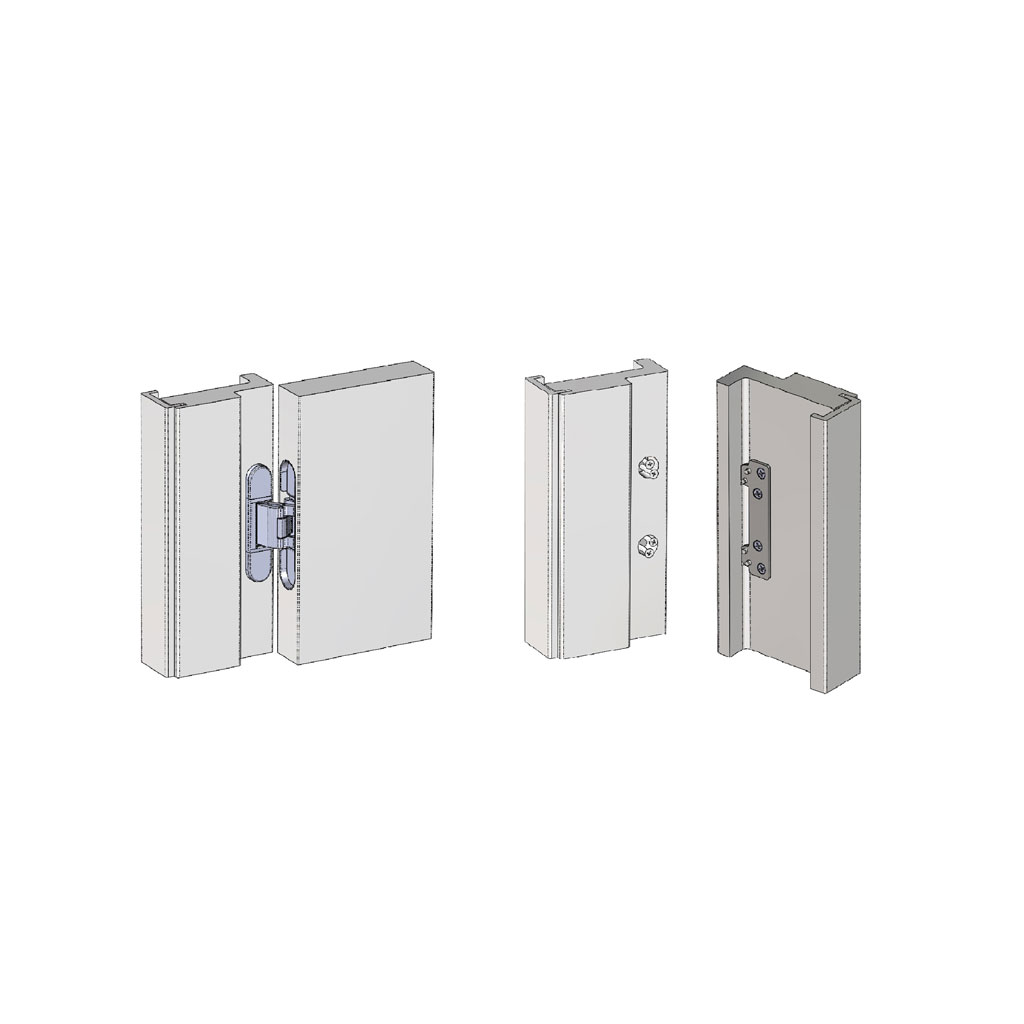

• Fixation of plate with four woodscrews on inner side of casing frame
• The Hinge will be fixed with 4x M5 screws onto fixing plate and casing frame

Technical details

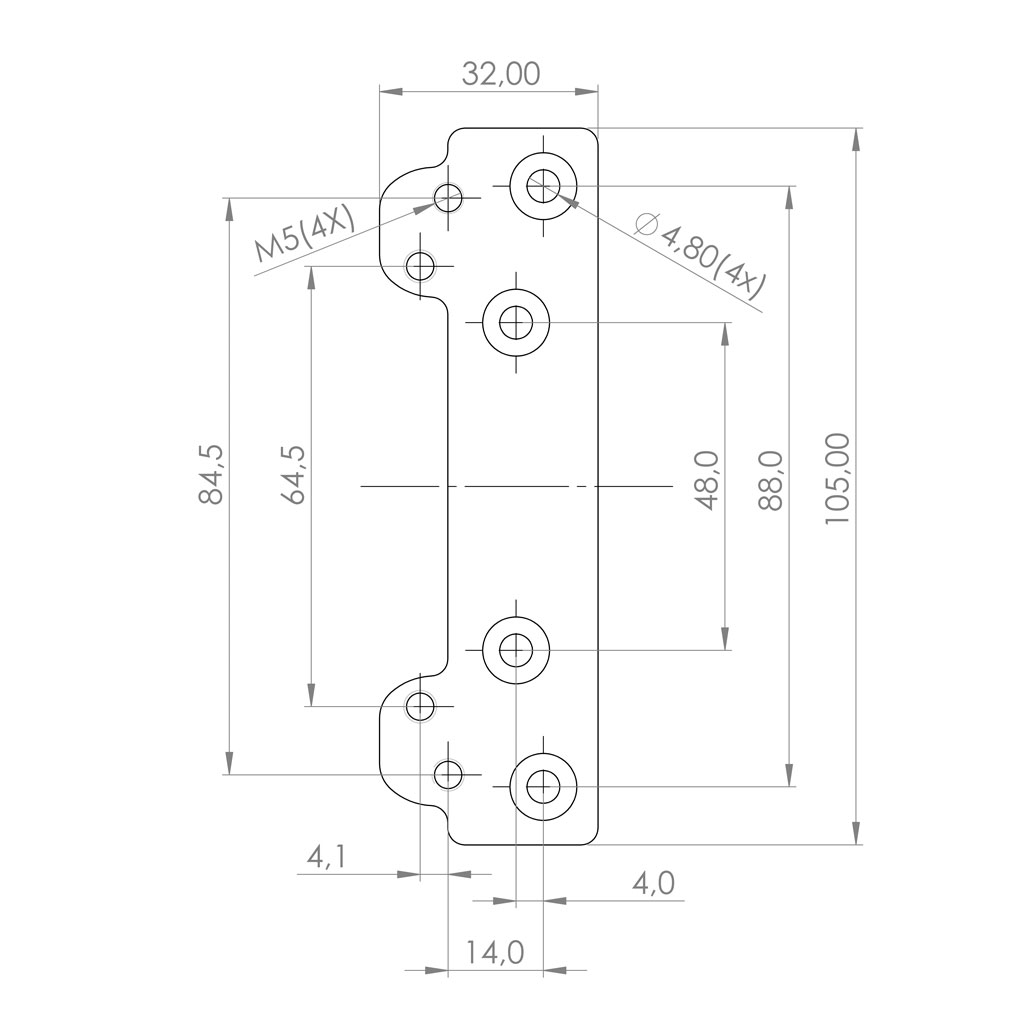

• Overall product dimensions: 105x32x3mm
• Including installation screws and bolts
• Wall thickness of casing frame min. 15mm

Installation Downloads

• CAD file for Installation
