Product Description

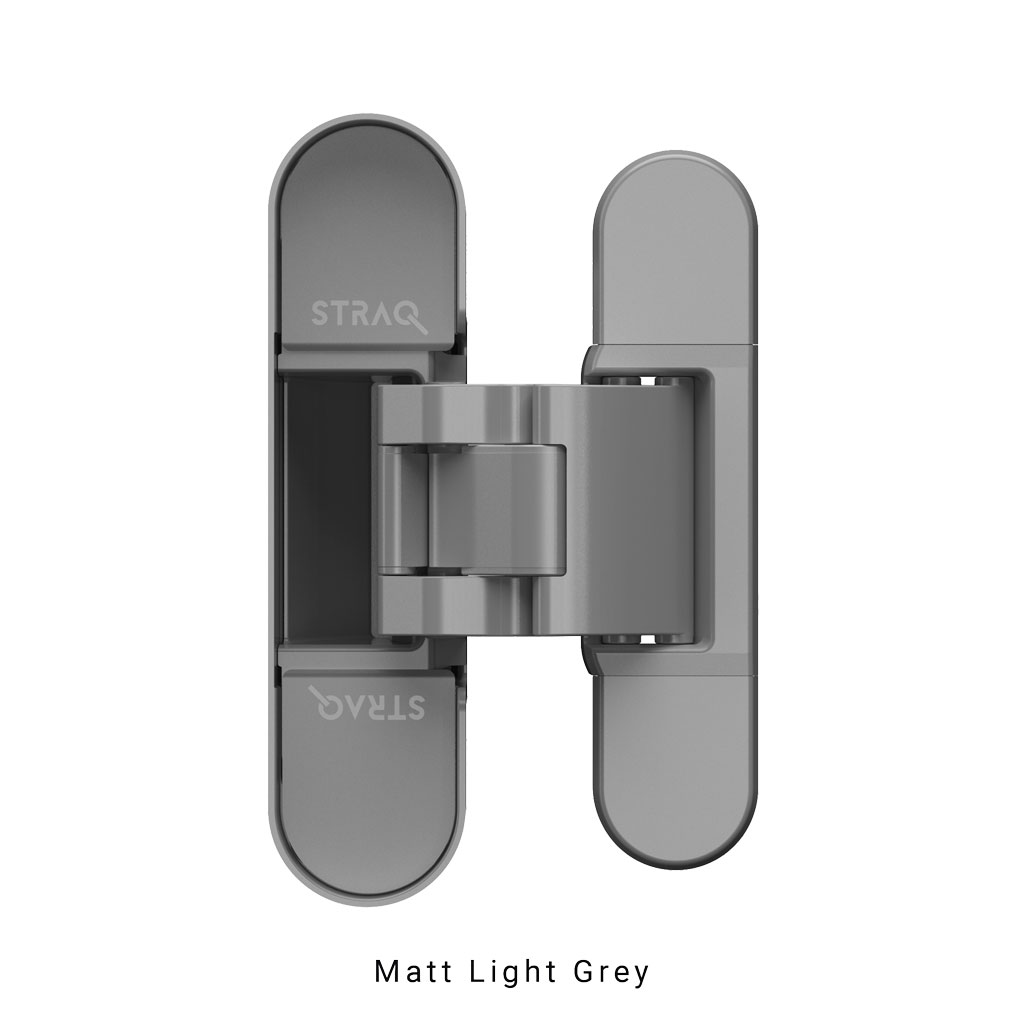

• Surface mount hinge with invisible installation for unrebated doors, steel doors

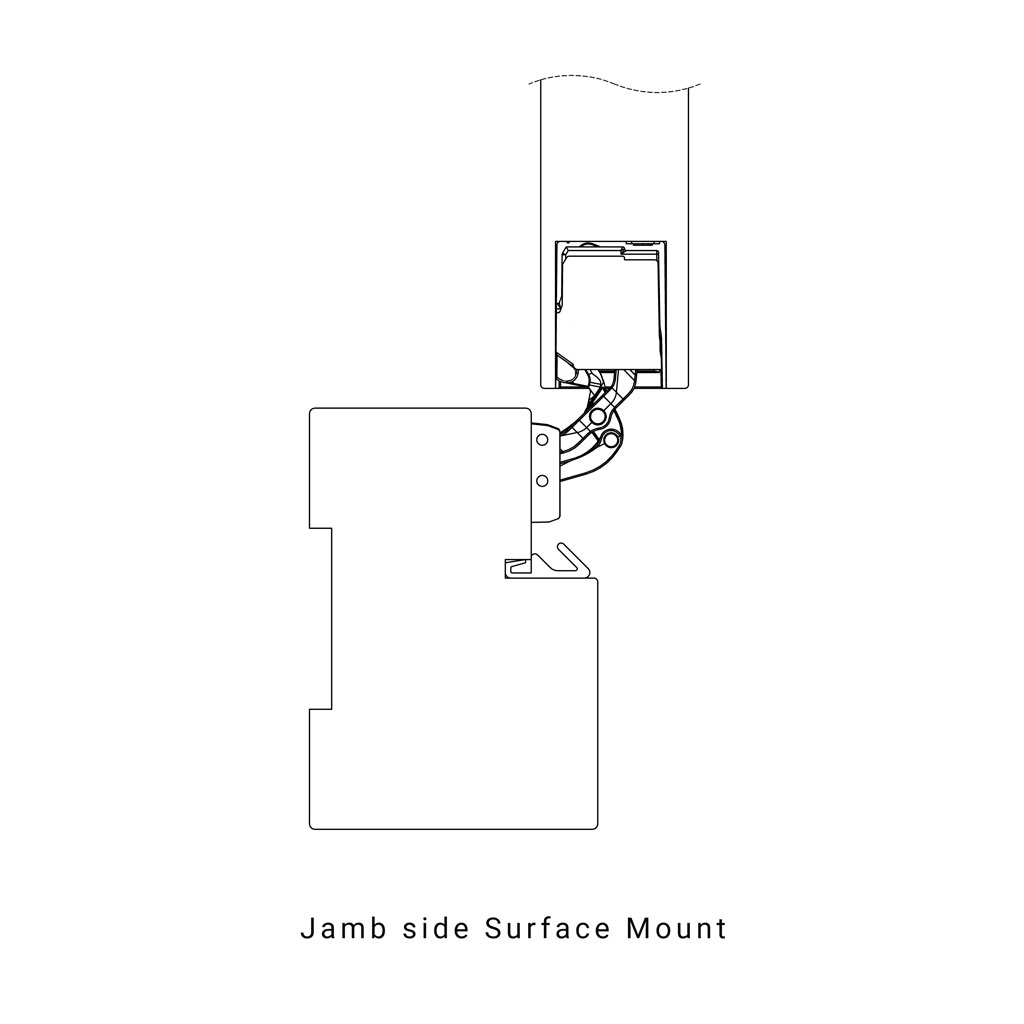

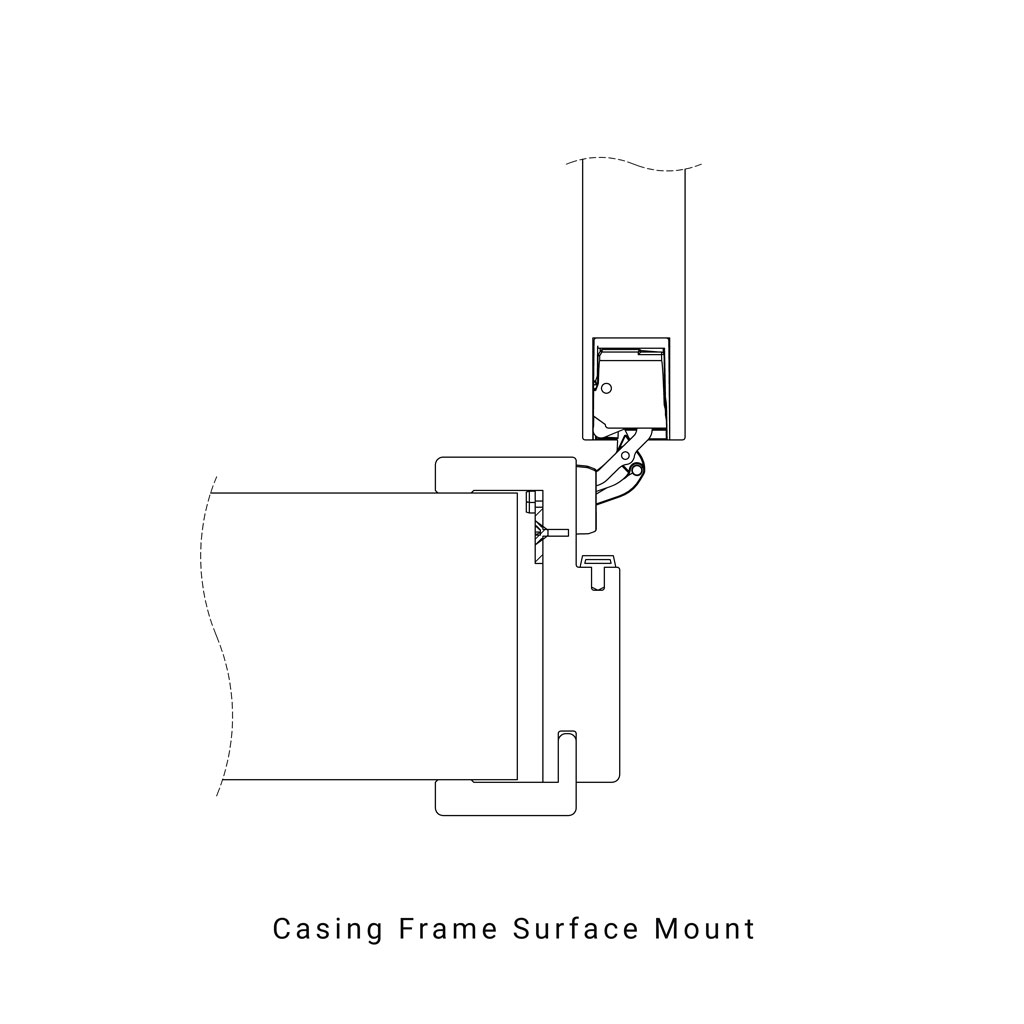

• Installation on frames of timber, steel and aluminium, and case frame

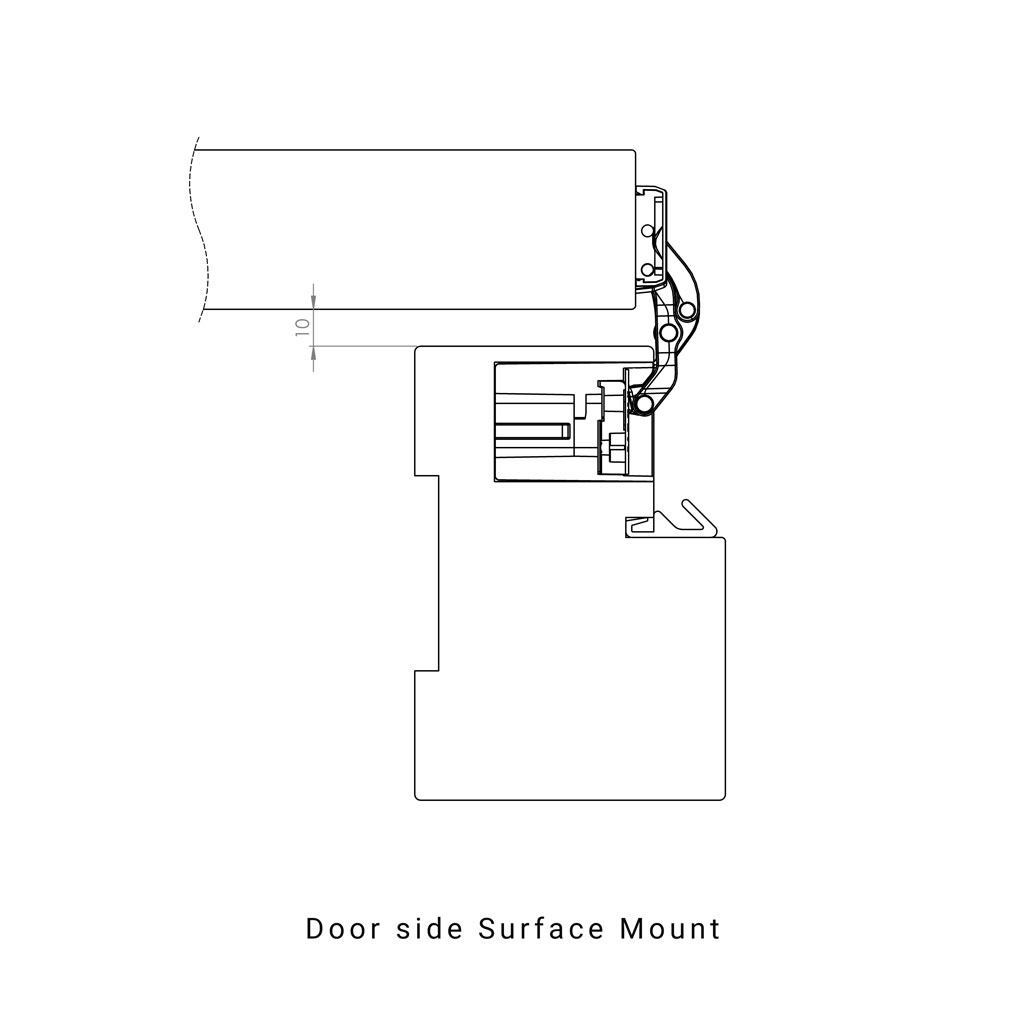

• Wide opening radius suits cladding

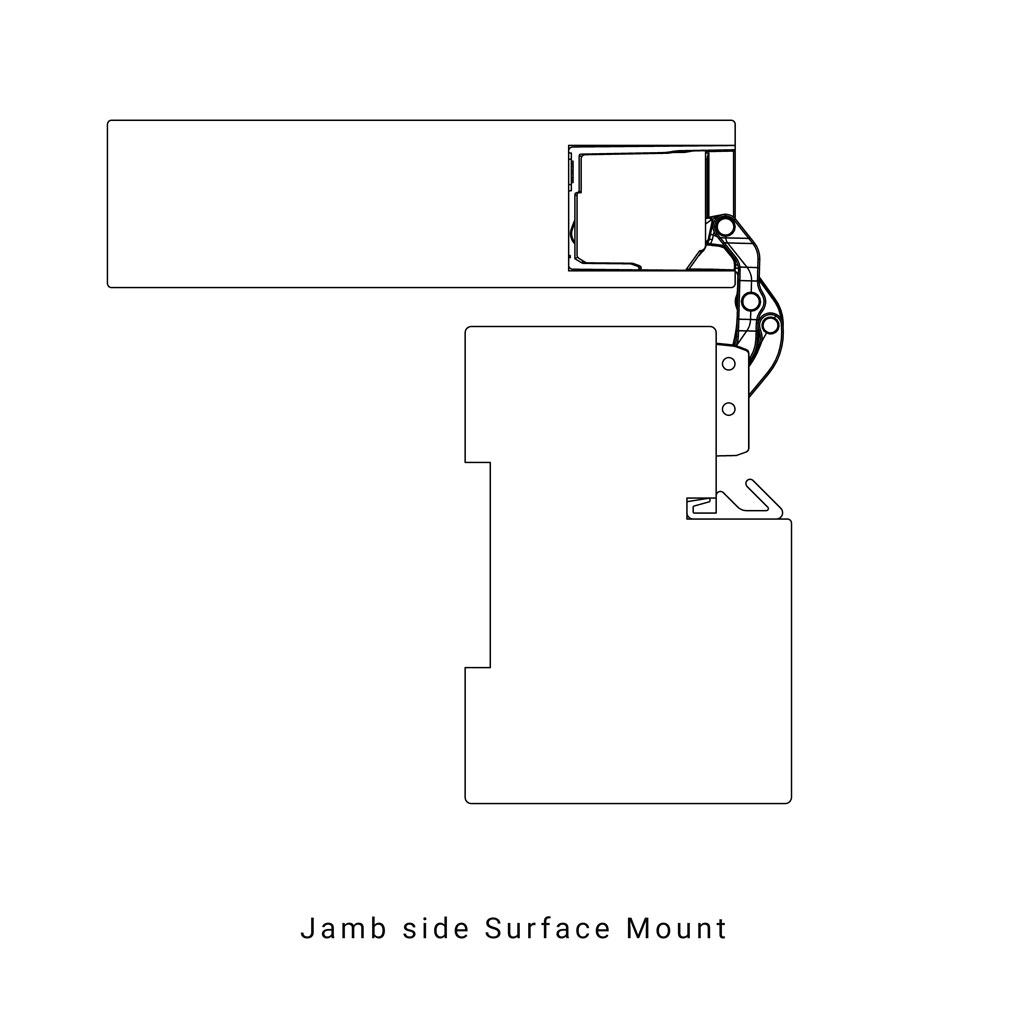

• Opening angle up to 180°
• Maintenance-free slide bearings
• Right hand and left hand applicable
• Comfortable 3D adjustment
• Including screws and screw-covers for installation
• Plastic free packaging

Unique Advantages

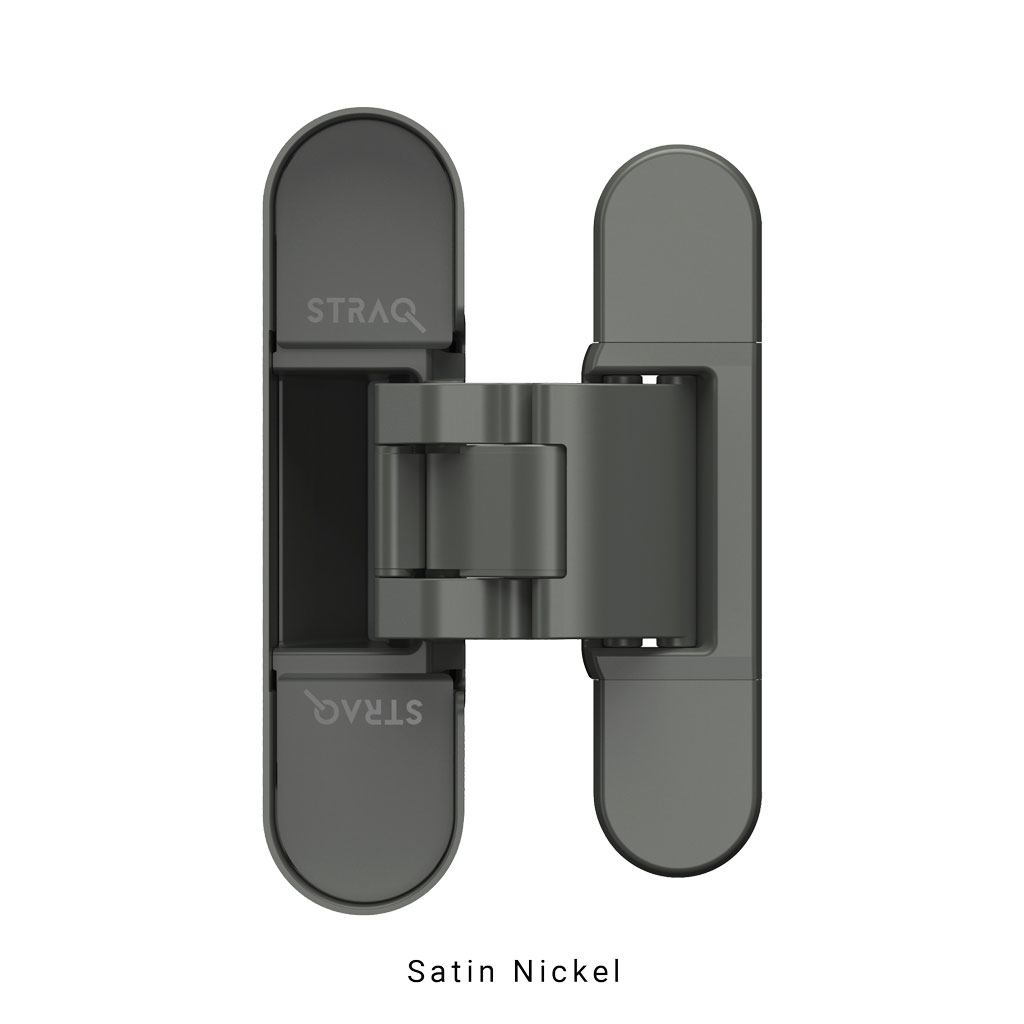

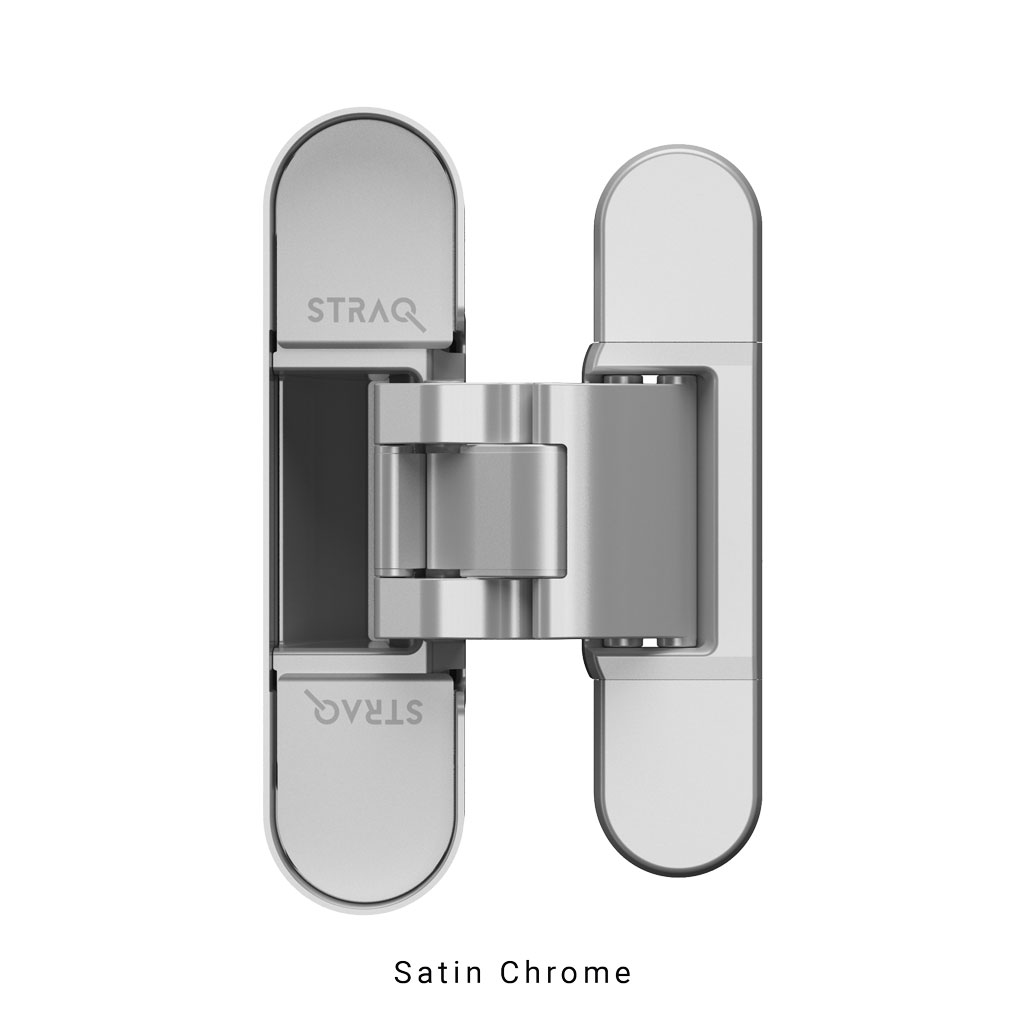

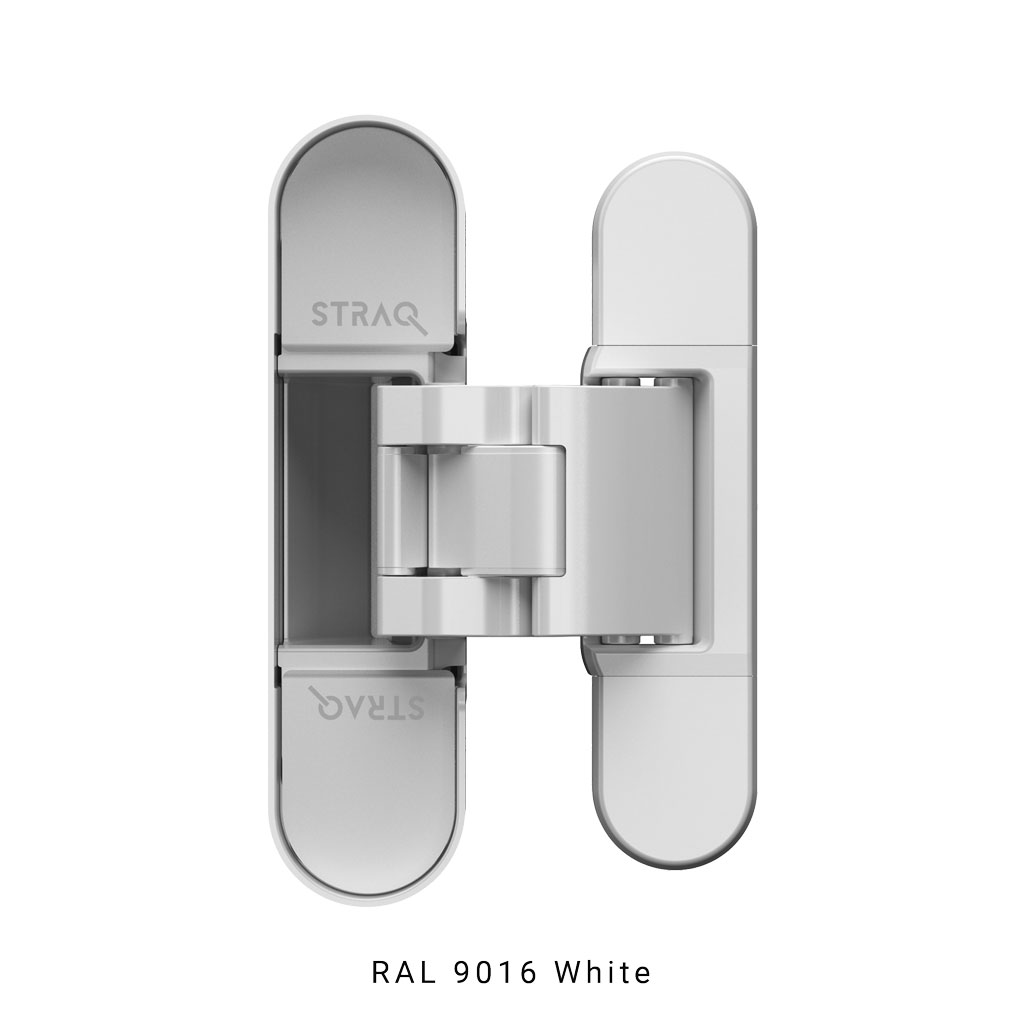

• Customized colour options for business partners
• Easy installation: One sided cavity, 50% fewer elements to process
• Easy installation: Direct mount of door onto frame, no wood cutting on construction area, suitable for DIY installation

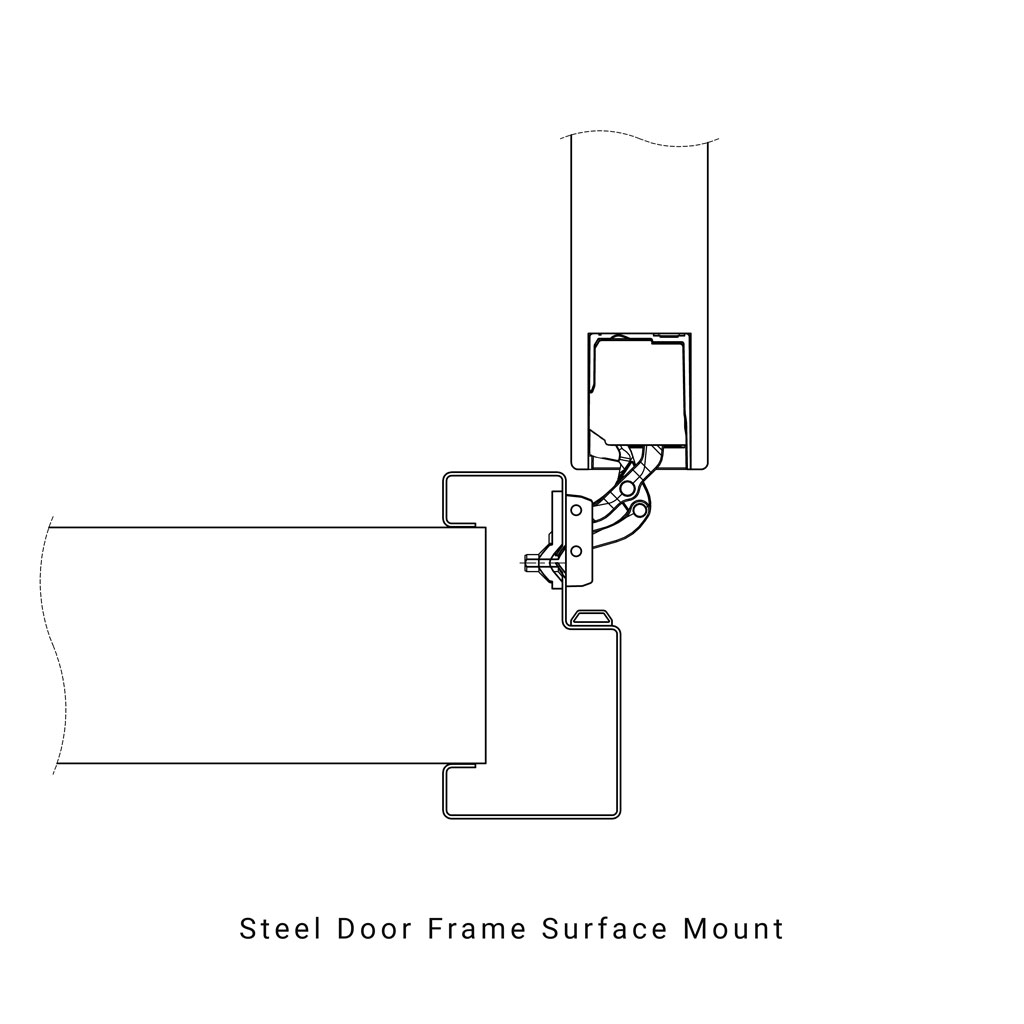

• Hinge can be mounted with simple bracket on the surface of a steel door(frame), no grinding, no welding
• Flexiblity: Easier exchange of doors and change of rotation direction of doors, lower chance of error
• Perfect for Renovation: No cutting into existing older doorframes
• Wide Application: suitable for narrow frame doors (e.g. boarddoors)

Technical details

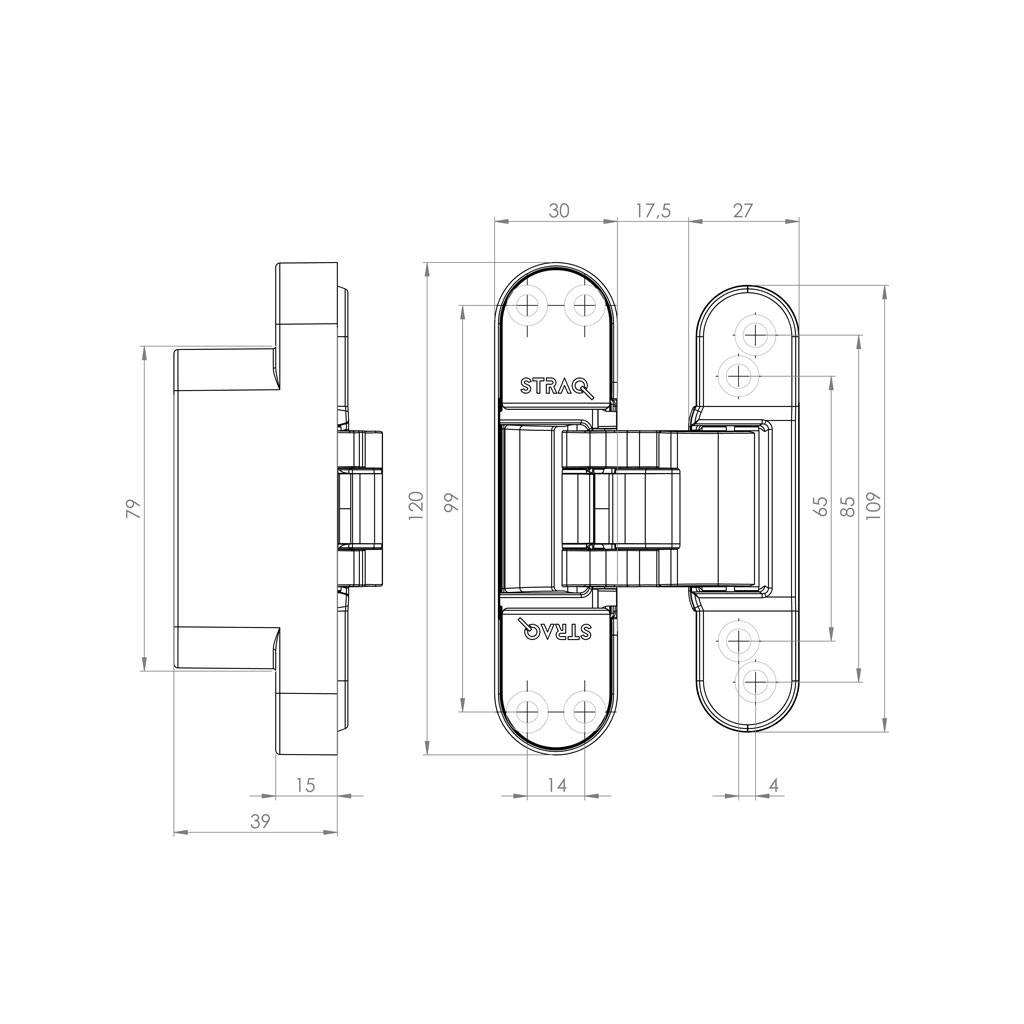

• Overall dimensions: 120x30x40mm
• Opening angle up to 180°
• Maintenance free POM bearings
• Load Capacity: 60kgs, see Installation Manual for more details

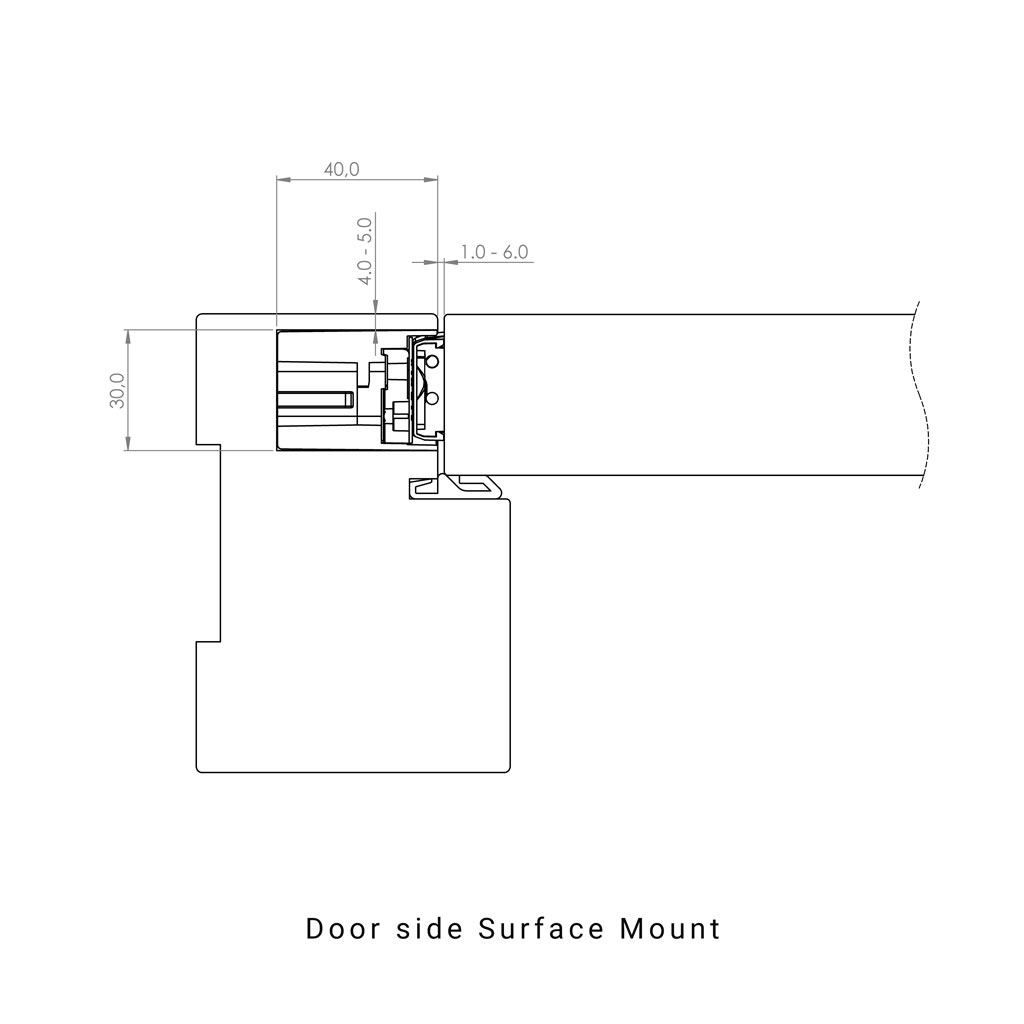

• Cavity size:
  • Step 1: 120x30mm: 15mm deep
  • Step 2: 90x30mm: 40mm deep
• Minimal Door Thickness: 38mm
• 3D adjustment:
  • side +/- 2,5 mm, height +/- 3,0 mm , compression +/- 1,5 mm
• Material: Zamac, Stainless Steel and POM
• Screws: 4x40mm

Installation Downloads

• Manual for 3D hinge adjustment
• CAD files for Installation
• Installation Manual
